Kverneland 5090 MT BX (hidden)

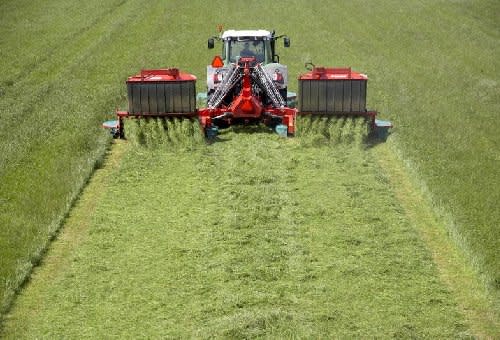

• Kverneland 5090 MT is the most flexible mower conditioner solution on the market. It can be equipped with wide spreading equipment and the Kverneland BX Auto-Swather solution to ensure outstanding flexibility. It is easy to change between the different configurations, and conversion is very quick.

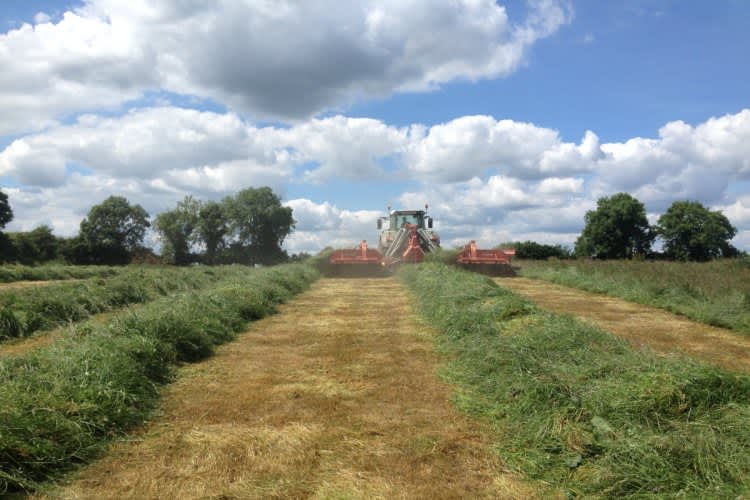

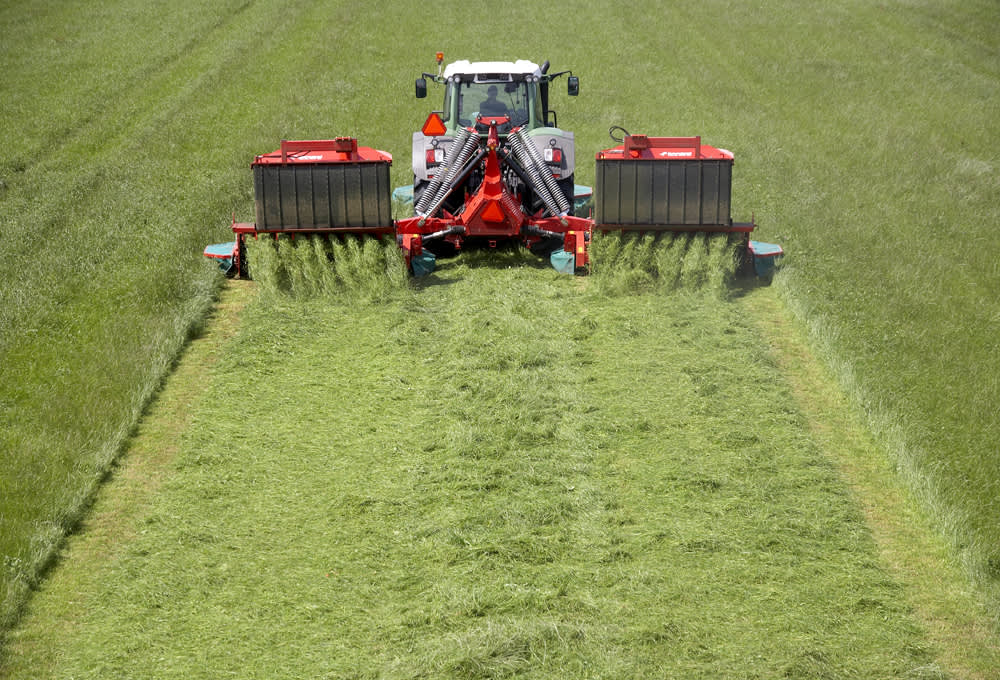

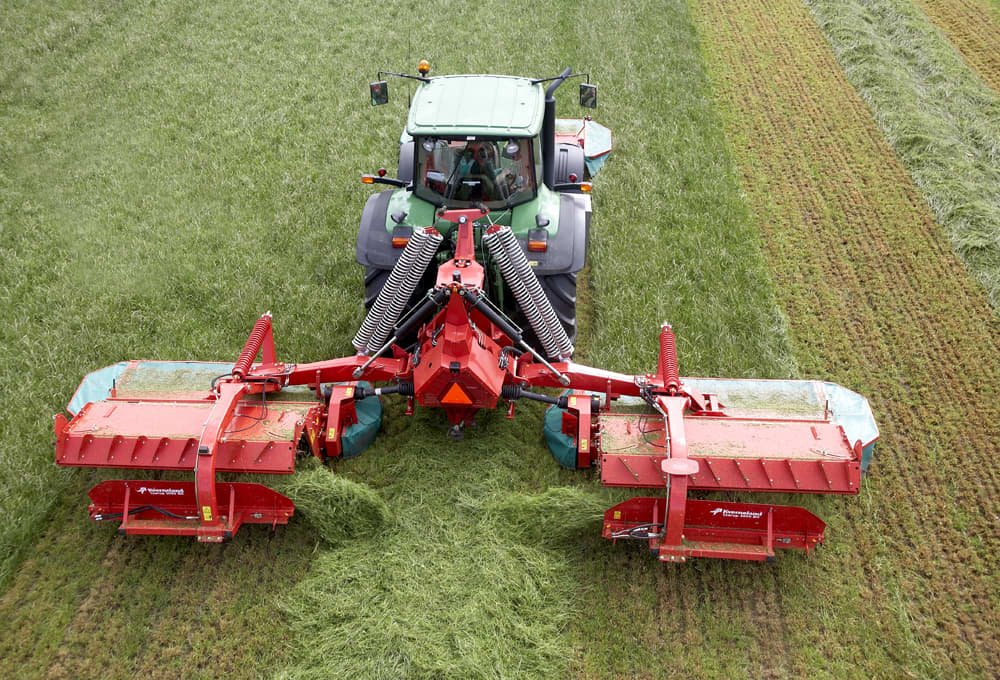

• Kverneland 5090 MT can be set for 3 single swaths, wide spreading or three swaths into one with the Kverneland BX-Belt. An extra feature is the fact that the right belt can run in two directions, meaning that the Kverneland 5090 MT will place grass from 6 m into one swath.

 Suited For All Conditions

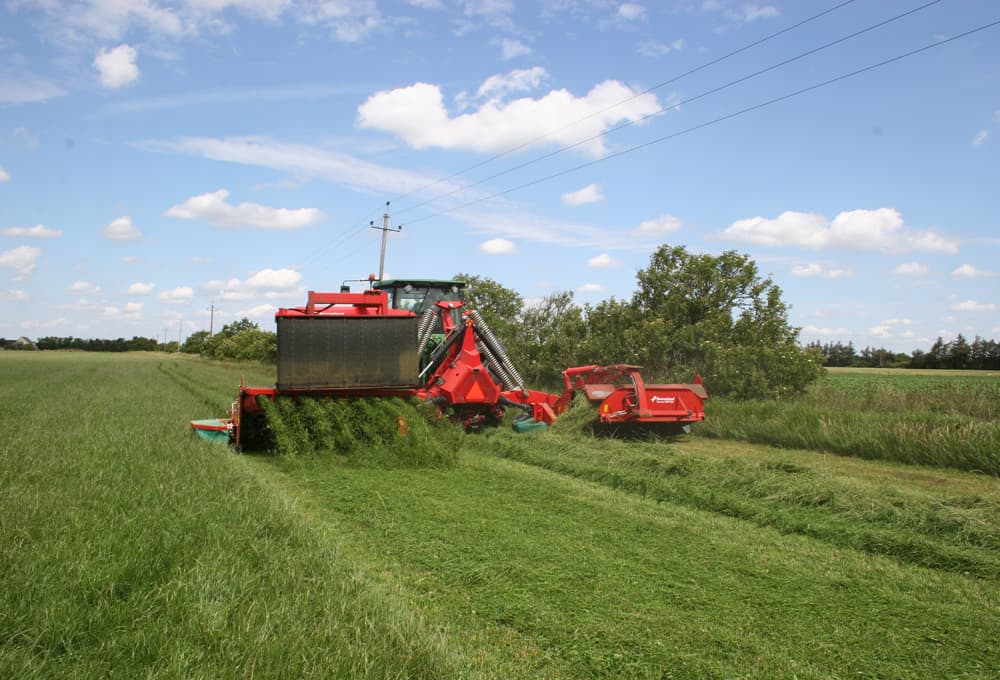

• The BX-Belt is capable of placing crop from either 6 or 9m into a single swath. The right hand belt can run both left and right, giving the option of placing three swaths into one, or in a two by two formation.

• The 5090 MT and 5090 MT BX are fitted with a balancing weight arm, linked to the 4 heavy duty ground pressure springs on top of the three point suspension, to ensure an even weight distribution of the two rear sections.

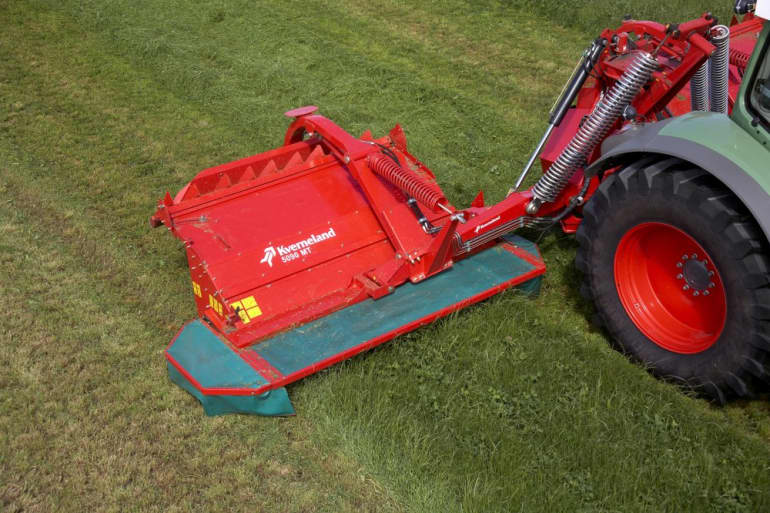

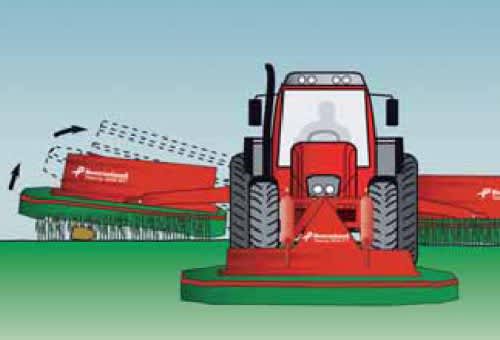

• The low gravity scale arm suspension ensures that the mowing units always remain horizontal in relation to the ground, when working in uneven or hilly conditions, or if the tractor is hitting small obstacles in the field.
• When using SideShift equipment, the balancing arm also facilitates equal ground pressure on either side of the rear mower units.

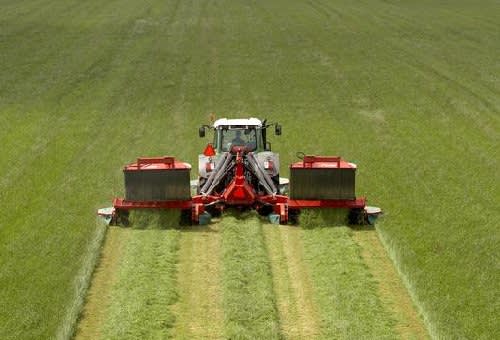

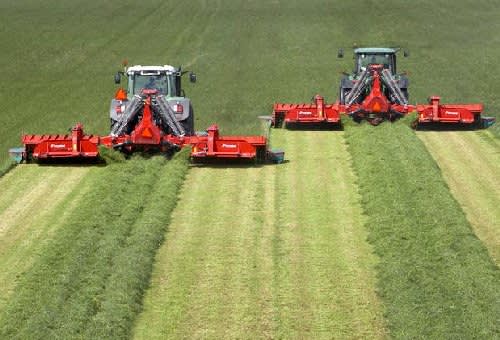

• Kverneland 5090 MT can be set for 3 single swaths, wide spreading or three swaths into one with the Kverneland BX-Belt.
• An extra feature is the fact that the right belt can run in two directions, meaning that the Kverneland 5090 MT will place grass from 6 m into one swath.
• When not in use the optional Kverneland BX-belt is raised hydraulically to a position above the mowing units. All you need to do is to push the button on the control box to change the configurations.

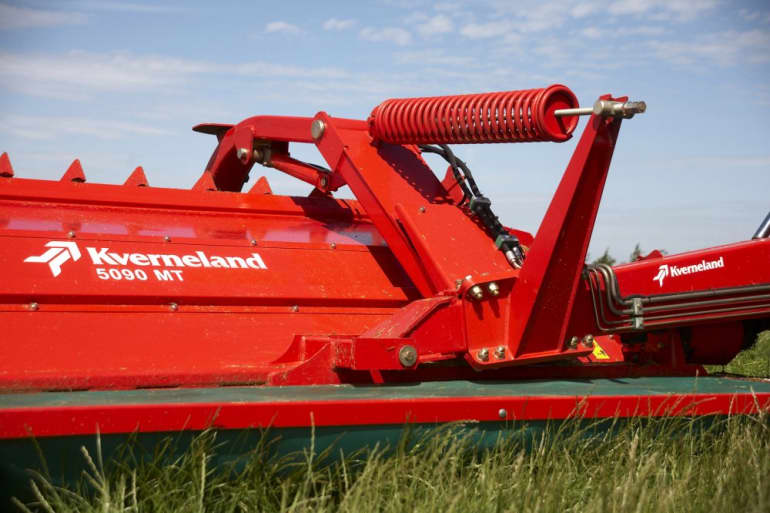

• The Kverneland BX-Belts are floating on two large springs, and thus performing a unique and even swath formation under all conditions (no jumping up and down of belt units). A unique and simple solution with several advantages.
• Fewer moveable parts, ensuring less wear and maintenance.
• Better flotation of the entire machine.
• Even swath formation under all conditions.

• As an option the Kverneland mower conditioners can be equipped with widespreading equipment. In this way, crop can be cut and spread in one operation, saving both time and at least one tedder operation.
• The spreading vanes of the Kverneland FlipOver system are placed further back on the mowing unit than with conventional systems.
• This is thanks to the spreading plate positioned far to the rear when in use. The improved distance between the conditioning rotor and the spreading vanes gives a more even spreading across the entire working width. A more even spreading ensures a better wilting.

• The SemiSwing conditioner system combines the aggressive conditioning seen from fixed fingers with the excellent tine protection typically associated with free swinging tines.
• During normal operation the tines are fixed for effective conditioning, but if a SemiSwing tine comes into contact with an obstacle, force will exceed 22kg (48.5lbs) and it will spring back and leave a generous space for the obstacles up to 103mm to pass.
• The complete conditioner tine has been redesigned to move the centre of gravity. The result is that the tine will stay in position when hitting the crop, to give full conditioner effect and to minimise wear and tear on the turning points.
• The angle and position of the SemiSwing tines give a better crop transport. The crop is moved away from the conditioner rotor, resulting in reduced risk of blockages and full effect of the conditioner plate.

When deciding what equipment to purchase, it is not always easy to find the optimal solution within today’s broad market offering. We understand this complexity and are committed to providing easy and intuitive farming solutions.

That is why Kverneland’s precision farming offering is built on ISOBUS compatibility, with the Tellus 700 and Tellus 1200 terminals at its core. Acting as the central control hub, these terminals enable seamless integration between your ISOBUS machine, the electronics, and digital products.

This ensures simple and intuitive machine control, efficient operation, and full flexibility across your entire farming setup – giving you complete control from the cab, across every task.

The Tellus 1200 Universal Terminal is a high-performance 12-inch display designed for maximum control and flexibility. With multiple customisable screen views, it allows operators to monitor and manage several functions simultaneously for greater efficiency. Fully ISOBUS compatible, it integrates seamlessly with tractors, implements and precision farming solutions. Advanced guidance and application capabilities ensure precise, controlled operation, while the intuitive interface and adaptive day/night mode provide optimal visibility and ease of use in all conditions.

The Tellus 700 Universal Terminal combines precision farming capabilities in a compact and intuitive 7-inch display. With ISOBUS compatibility, it enables seamless control of tractors, implements and smart add-ons from a single interface. Its straightforward design ensures easy operation, while integrated guidance and application features support accurate and efficient fieldwork. The adaptive day/night mode guarantees clear visibility in all conditions, making it a reliable solution for a wide range of farming operations.
